Casa /Prodotti/Stagnola che timbra macchina tagliante/Digital Roll To Sheet Laser Die Cutter with Max 27m/min Cutting Speed and Max 330mm Label Width

Digital Roll To Sheet Laser Die Cutter with Max 27m/min Cutting Speed and Max 330mm Label Width

1Set
MOQ
Negoziabile
prezzo
Digital Roll To Sheet Laser Die Cutter with Max 27m/min Cutting Speed and Max 330mm Label Width
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Diametro massimo del rullo: 450 mm
Max Label Width: 330 mm
Legni da taglio: 4pcs massimo
Velocità di taglio: 27m/min massimo
Garanzia: Un anno
Peso: 1400kgs
Larghezza massima: da 288 a 330 mm
Applicazioni: Tagliando, laminare, fendente, taglio di strato
Evidenziare:

Max 27m/min Cutting Speed Laser Die Cutter

,

Max 330mm Label Width Digital Die Cutting Machine

,

Max 4pcs Cutting Blades Label Die Cutter
Informazioni di base
Luogo di origine: Cina
Marca: ECOOGRAPHIX
Certificazione: CE
Numero di modello: VD3350L
Documento: Digital Label Die Cutter VD...0 .pdf
Termini di pagamento e spedizione
Imballaggi particolari: imballaggio di esportazione standard
Tempi di consegna: Circa 20 giorni
Termini di pagamento: L/c, t/t
Capacità di alimentazione: 300set
Descrizione di prodotto

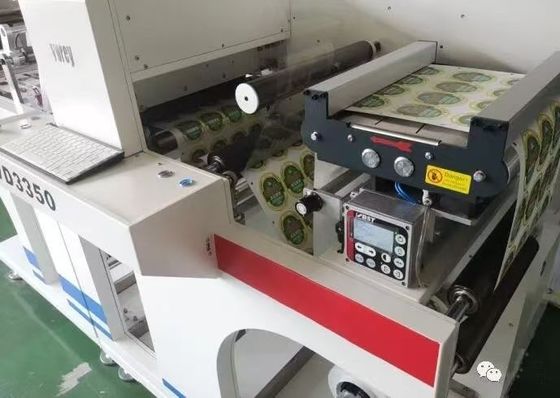

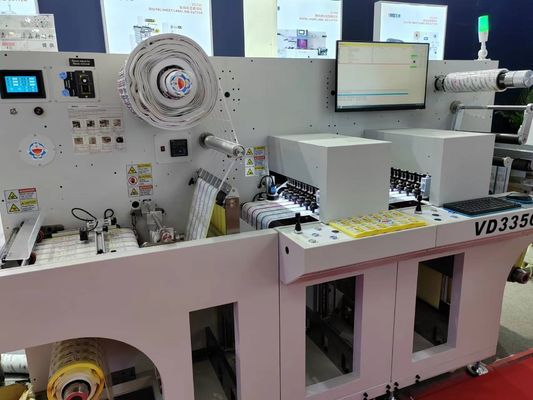

Digital Roll To Sheet Label Laser Die Cutter With Laminating
The laser die-cutting machine is a digital processing device integrating multiple advanced technologies, combining automatic label material conveyor, automatic web guide, laser flying cutting, and automatic waste removal into one system.
It is suitable for diverse processing solutions ranging from roll-to-roll to roll-to-sheet applications. The machine efficiently handles precision cutting requirements for non-metallic materials such as adhesive labels, PP synthetic paper, PVC film, cardboard, and offset paper, encompassing full-cut, half-cut, flying line, punching, and waste removal composite processes.
With its mold-free digital processing capability, the system directly drives the cutting process through electronic file data, significantly improving production efficiency for small-batch orders, effectively shortening product delivery cycles, and providing flexible and efficient smart manufacturing solutions for personalized customization needs.

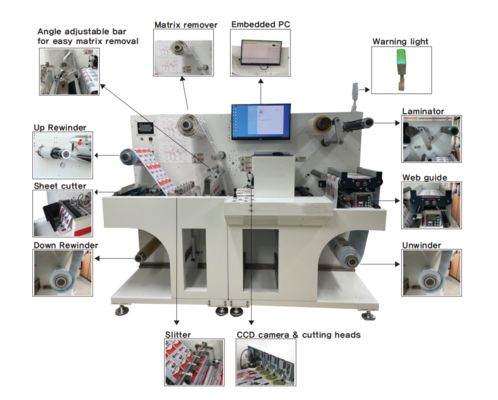

Product Features
  • High precision feeding system Utilizes ultrasonic web-guide system to ensure perfect material feeding.
  • Cold laminating Includes cold laminating function for bright, perfect labels. Back liner removal is optional.
  • Digital die-cutting system Features high precision screw transmission system with maximum speed of 9m per minute. Individual control for 4 heads with auto-adjust distance function.

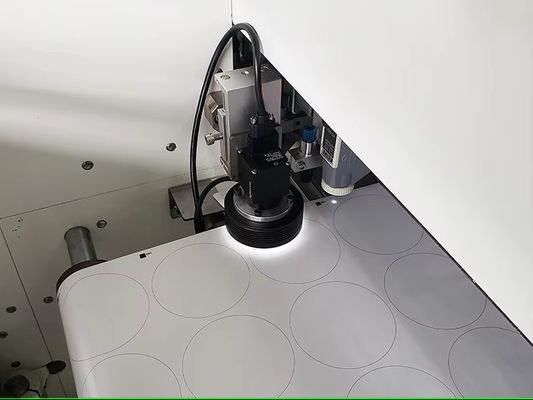

  • CCD identify system CCD camera position and identify system recognizes sequences for automatic file changing and next graphic cutting.
  • Waste removing system Dual mechanical force expansion control with multi-angle waste discharge frame ensures uniform waste removal and clean products.
  • Built-in sheet cutting system Optional built-in PC350 slitter for wired cutting and synchronous die-cutting/sheet cutting.
Digital Roll To Sheet Laser Die Cutter with Max 27m/min Cutting Speed and Max 330mm Label Width 0 Digital Roll To Sheet Laser Die Cutter with Max 27m/min Cutting Speed and Max 330mm Label Width 1 Digital Roll To Sheet Laser Die Cutter with Max 27m/min Cutting Speed and Max 330mm Label Width 2 Digital Roll To Sheet Laser Die Cutter with Max 27m/min Cutting Speed and Max 330mm Label Width 3 Digital Roll To Sheet Laser Die Cutter with Max 27m/min Cutting Speed and Max 330mm Label Width 4
