Thermal CTP Plate Machine with Max Plate Size 1163x940mm 3 Years Warranty and 830nm Laser Wavelength

1Set
MOQ
Negoziabile
prezzo
Thermal CTP Plate Machine with Max Plate Size 1163x940mm 3 Years Warranty and 830nm Laser Wavelength
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Canali laser: 256CH
Velocità di uscita: 48 ppm
Dimensione di Max.Plate: 1163X940 mm)
Caricamento e scarico delle piastre: semiautomatico, manuale
Peso netto: 900KGS
Dimensione della macchina: 2, 320×1,080×960 mm (( L×W×H))
Garanzia: 3 anni o per tutta la vita
Metodo di esposizione: Bombo esterno
Evidenziare:

Max Plate Size CTP Plate Machine

,

3 Years Warranty Thermal CTP Machine

,

830nm Laser Computer To Plate Machine
Informazioni di base
Luogo di origine: Cina
Marca: ECOOGRAPHIX
Certificazione: CE
Numero di modello: T800X
Documento: Thermal CTP machine T800 se...ix.pdf
Termini di pagamento e spedizione
Imballaggi particolari: Imballaggio standard per l'esportazione per cassa in compensato
Tempi di consegna: Circa 20 giorni
Termini di pagamento: L/c, t/t
Capacità di alimentazione: 500 set
Descrizione di prodotto
CTP OEM Factory 48PPH Newspaper Offset Plate Machine
EcooGraphix is a professional and leading manufacturer/supplier of CTP Equipment and materials in China. With about 20 years' exporting experience, we have many partners and customers worldwide, including OEM partnerships with Presstek/Mark Andy in USA, Beneco in Canada, Focus Print Group in Australia, and others.
Product Offerings
  • Prepress CTP plate making machines: Thermal CTP/UV CTP with speeds from 16PPH to 55PPH
  • Flexo CTP Polymer plate making machines for labels and carton packaging
Specifications
Model: EcooSetter T-800QE Offline Easy to Use Thermal CTP
Laser wavelength: 830nm
Plate: Positive Thermal CTP Plate
Exposing Method: External Drum
Imaging System: 256-channel
Throughput: 48 plates per hour (1030mmx800mm at 2400dpi)
Plate Size: Max. 1163x940mm, Min. 300x400mm
Plate Thickness: 0.15mm to 0.3mm
Resolutions: 2,400dpi
Repeatability: ±5μm
Interface: USB2.0
Weight: 900KG
Dimensions: 2530×1050×950mm (W×D×H)
Power Supply: Single-phase: 220AC+6%,-10%; Power Consumption: 4KW
Environment: Recommended: 21-25ºC, Max.18-26ºC, Humidity:40-70%
Application
The EcooGraphix Thermal CTP Plate Making Machine is essential for quick short-run offset printing, enabling direct output from computer to printing plate while saving film and labor costs. It delivers excellent image quality, reliable stability, and space efficiency.
Key Features
  • 256-channel laser light valve technology
  • High publishing speed of 38-48 sheets per hour
  • Square light spot imaging increases color saturation by 21%
  • Linear motors provide high-precision positioning and long service life
Thermal CTP Plate Machine with Max Plate Size 1163x940mm 3 Years Warranty and 830nm Laser Wavelength 0
Similar Models Comparison
Model T-800F T-800S T-800E
Imaging Diodes 64-channel 48-channel 32-channel
Throughput 28 plates/hour 22 plates/hour 16 plates/hour
Plate Sizes Max. 1,163×940mm, Min. 300×400mm
Media Type Positive 830nm Thermal CTP Plate
Machine Technology
  • Superior dot quality: 1%-99% dot reproduction, up to 300lpi screening
  • World-class components from Japan, USA, and Germany
  • Long lifetime: laser diodes last over 10,000 imaging hours (~200,000 plates)
  • 3-year warranty with free parts replacement
  • Proven worldwide market leader with over 6,000 units installed

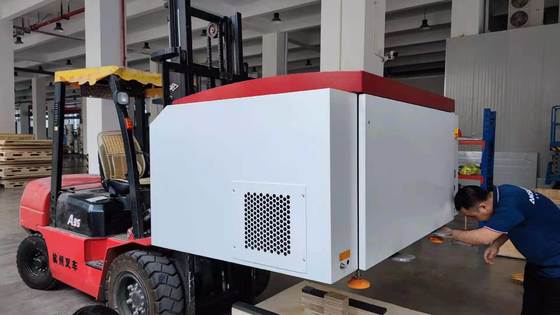

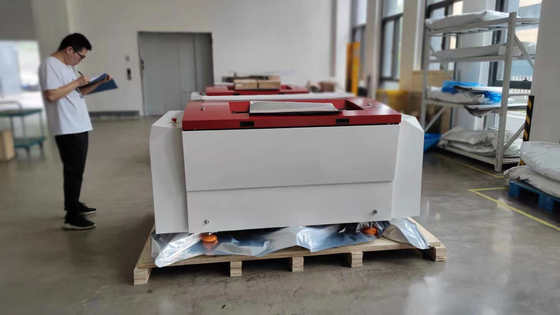

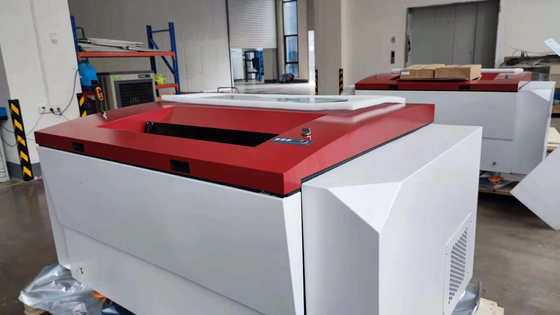

Our Factory
Thermal CTP Plate Machine with Max Plate Size 1163x940mm 3 Years Warranty and 830nm Laser Wavelength 1 Thermal CTP Plate Machine with Max Plate Size 1163x940mm 3 Years Warranty and 830nm Laser Wavelength 2 Thermal CTP Plate Machine with Max Plate Size 1163x940mm 3 Years Warranty and 830nm Laser Wavelength 3 Thermal CTP Plate Machine with Max Plate Size 1163x940mm 3 Years Warranty and 830nm Laser Wavelength 4 Thermal CTP Plate Machine with Max Plate Size 1163x940mm 3 Years Warranty and 830nm Laser Wavelength 5 Thermal CTP Plate Machine with Max Plate Size 1163x940mm 3 Years Warranty and 830nm Laser Wavelength 6
Frequently Asked Questions
Q: What are your main products?
A: We supply Prepress Thermal CTPs, CTCPs, VLF CTPs, Flexo CTPs, Processors, Offset Plates, Inks, Printing Blankets, and Postpress Packing Equipment.
Q: Is there any certification for your CTP machine?
A: Yes, all our CTP machines are certified by SGS and CE.
Q: Can you supply Workflow and RIP?
A: Yes, we provide Workflow Brain New and RIP Compose V13.
Q: What is the warranty period?
A: 3-year warranty for CTP machine. Lifetime guarantee on parts when using EcooGraphix CTP plates.
