Casa /Prodotti/Stampante a getto di inchiostro di Digital/Label Digital Embellishment Machine with Max. 60 m/min Speed 360*360 dpi Resolution and 10-150 micro Varnish Layer Thickness

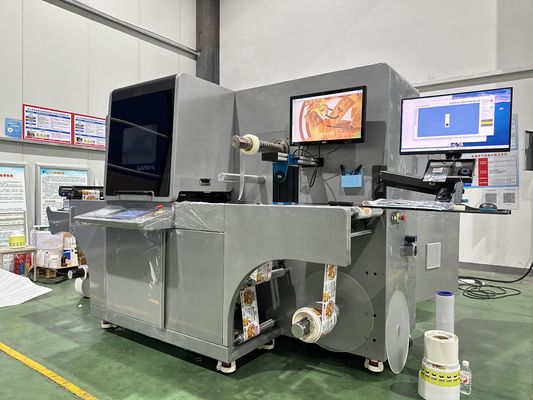

Label Digital Embellishment Machine with Max. 60 m/min Speed 360*360 dpi Resolution and 10-150 micro Varnish Layer Thickness

1 set
MOQ
$180000
prezzo
Label Digital Embellishment Machine with Max. 60 m/min Speed 360*360 dpi Resolution and 10-150 micro Varnish Layer Thickness
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
velocità: Massimo. 60 metri/minuto
Risoluzione: dpi 360*360, fino al dpi 1440*360
Formato: 288/330/450mm
Teste di stampa: Konica Minolta
Spessore dello strato di vernice: 10-150 micro a passaggio singolo
Polimerizzazione: Preindurimento UV-LED/Indurimento completo tramite UV-LED
Evidenziare:

Max. 60 m/min Speed Label Digital Embellishment Machine

,

360*360 dpi Resolution Finishing Machine

,

10-150 micro Varnish Layer Thickness Roll-to-Roll Embellishment Machine
Informazioni di base
Luogo di origine: Cina
Marca: Ecoospark
Certificazione: ISO, CE
Numero di modello: DS288/330/450
Documento: Digital Label Cold Stamping...rk.pdf
Termini di pagamento e spedizione
Imballaggi particolari: cassa in legno con protezione frattura
Tempi di consegna: 30 -60 giorni
Termini di pagamento: T/T
Capacità di alimentazione: 200 serie all'anno
Descrizione di prodotto
Label Digital Embellishment Machine for Roll-to-Roll Processing

This specialized finishing machine enhances printed label rolls with foil stamping and varnishing capabilities, transforming standard labels into premium products.

ECOOSPARK Digital Embellishment Machine
Advanced Digital Finishing Solution

The Ecoospark represents a breakthrough in digital embellishment technology for roll-to-roll label processing. This fully digital system delivers cold foil stamping and precise varnishing using drop-on-demand technology, offering unmatched flexibility and rapid job turnover.

Key Features
  • Konica Minolta printing heads for superior precision
  • Varnish layer thickness range: 10-150 microns per pass
  • Braille printing capability (300 micron relief via two-pass processing)
  • Multi-layer effects including 3D case gold and braille printing
Operational Advantages
  • Unlimited design possibilities
  • Fast setup time with no tools required
  • Automatic varnish ink cleaning system
  • Immediate varnish consumption calculation
  • Optional laminating or flexo coating
  • No special treatment needed for overprinting
Specialty Finishing Effects
  • Spot UV Varnishing
  • Digital Cold Foil Stamping
  • 3D Emboss Shining
  • Variable Data Processing
  • Braille Printing
Label Digital Embellishment Machine with Max. 60 m/min Speed 360*360 dpi Resolution and 10-150 micro Varnish Layer Thickness 0
Finishing Effect Showcase
Effect Type Example 1 Example 2
Spot varnishing Label Digital Embellishment Machine with Max. 60 m/min Speed 360*360 dpi Resolution and 10-150 micro Varnish Layer Thickness 1 Label Digital Embellishment Machine with Max. 60 m/min Speed 360*360 dpi Resolution and 10-150 micro Varnish Layer Thickness 2
Cold foil stamping Label Digital Embellishment Machine with Max. 60 m/min Speed 360*360 dpi Resolution and 10-150 micro Varnish Layer Thickness 3 Label Digital Embellishment Machine with Max. 60 m/min Speed 360*360 dpi Resolution and 10-150 micro Varnish Layer Thickness 4
3D embossing Label Digital Embellishment Machine with Max. 60 m/min Speed 360*360 dpi Resolution and 10-150 micro Varnish Layer Thickness 5 Label Digital Embellishment Machine with Max. 60 m/min Speed 360*360 dpi Resolution and 10-150 micro Varnish Layer Thickness 6
Braille Label Digital Embellishment Machine with Max. 60 m/min Speed 360*360 dpi Resolution and 10-150 micro Varnish Layer Thickness 7 Label Digital Embellishment Machine with Max. 60 m/min Speed 360*360 dpi Resolution and 10-150 micro Varnish Layer Thickness 8
Technical Specifications
Specification Ecoospark 330 Ecoospark 288
Printing Technology UV Piezo DoD (drop on demand)-inkjet
Resolution 360*360 dpi, up to 1440*360 dpi
Printing speed 10m/min - 60m/min (dependent on polymer layer thickness)
Variable Image system PDF, optimized PDF, Optional barcode system
Supported image standards PDF, PDF/VT, TIFF, JPEG, BMP & other database files
Substrates Offset, Digital, Plastics, Laminated and coated substrates
Printing image width 330mm * 10m (Length) 288mm * 10m (Length)
Polymer WB-DS-Clear Polymer
Polymer layer thickness From 10 up to 200 microns
Ink curing Inter UV-LED Pre-curing/Full curing by UV-LED
Unwinder diameter Max. 700mm, Core 76mm
Rewinder diameter Max. 700mm, Core 76mm
Substrates thickness 30-400 micron
Substrates width Max 330mm Max. 288mm
Press with Foil station Machine dimensions (L*H*W): 3500mm*1900mm*1800mm
Operating environment Temperature: 15℃-30℃, Humidity: 40%-80% relative humidity
Electrical requirements Voltage: 3*380, ±5% 3 phases +G+N; Frequency: 50/60 Hz; Current: Avg. 25 Amps
Weight 3000kg 2700kg

Label Digital Embellishment Machine with Max. 60 m/min Speed 360*360 dpi Resolution and 10-150 micro Varnish Layer Thickness 9
